How to Install Monitor on iOS Devices

This article is for IT Contacts.

This article outlines the steps for installing Monitor on iPads. You can protect iPads by ensuring the Smoothwall Browser is the only web browser used on these devices, allowing Monitor to scan text that users enter into web pages.

During deployment, you must remove all browsers, including Safari, as these browsers cannot monitor text that users enter into web pages.

What you need

To install Smoothwall Browser on iPads, you need the following:

  • iOS14 or later
  • iPad enrollment to your school’s MDM
  • Monitor licence information
    1. Sign in to Smoothwall Portal > Monitor > Organisations.
    2. On the Organisations tab, select Edit for your organisation (or school).
    3. On the left navigation, select Licence information.
    4. Copy and save your UNCL Serial (Serial) and Organization ID (UUID).

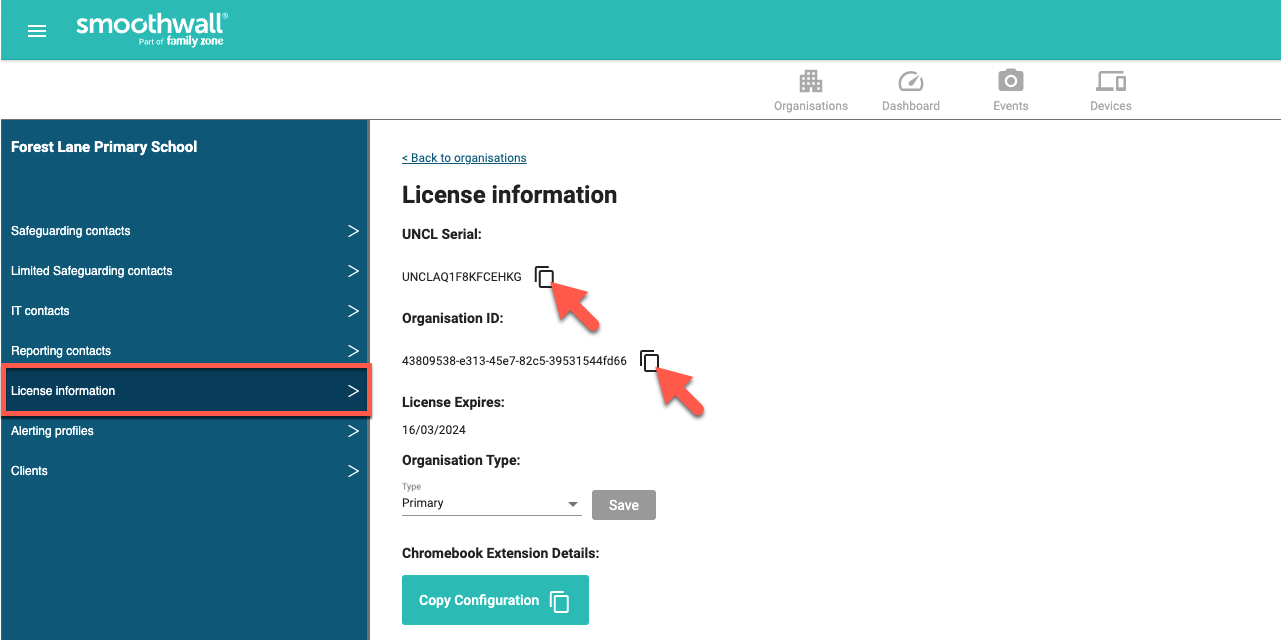

Image 1: Copy and save UNCL Serial and Organization ID.

Step1: Push the Smoothwall browser to iPads

Monitor recommends updating all your iPads to Smoothwall Browser 39.3 or newer.

  1. In your MDM select Show or Hide Apps.

    Note

    Refer to your MDM’s documentation for more information on disabling access to Safari.

  2. Disable Safari and other browser apps (for example, Google Chrome, Microsoft Edge, and Brave).
  3. Push the Smoothwall Browser app with the minimum three settings:
    • Your UNCL Serial number for Monitor
    • Your OrgID/TenantID for Monitor
    • The username of the student assigned to the iPad

Most MDMs will identify the Bundle ID automatically when you add the Smoothwall Browser app. If your MDM requires an explicit association of the Bundle ID, use ‘com.smoothwall.ios.Firefox’ (case sensitive).

Tip

The data fields you need to configure Monitor include ‘Smoothwall’ as an identifier on the field name. You may also see other data fields used by your organisation.

The following field names are for Smoothwall Browser 39.3 and newer. Monitor will support older versions of the configuration field names if you can’t update your iOS devices. See Deprecated MDM Configuration Field Names for information on old names.

Field Name Field Type Purpose Examples
SmoothwallSerialNumber String

Required.

Smoothwall Serial number for your organisation. Starts with ‘UNCL’.

UNCLTEST1234TEST
SmoothwallTenantID String (case- insensitive)

Required.

Smoothwall OrgID (UUID) of your Organisation.

0040007a-f99d-0000-dbdb-70024c4bb000
UserID String

Required.

A user identifier to appear in alerts, log activity, and used to group users with an identifier automatically filled in by your MDM with your users’ information

If these are shared iPads deployed via Apple School Manager, use the steps in Additional Configuration Options for Shared iPads instead of the steps here.

%Email% (JAMF School)
{{userprincipalname}} (Intune)

UniqueDeviceID String (maximum of 40 characters)

Recommended.

Add an optional unique identifier for the device. Allow your MDM to autofill the UDID with the iPad’s IMEI or serial number.
The Smoothwall Browser app will auto-generate a UniqueDeviceID using UIDevice.identifierForVendor if you do not provide one.

Important

The UniqueDeviceID will reset when the app is removed and reinstalled.

%Name% (JAMF School)
{{DeviceName}}
(Intune)

HomePageURL String

Optional.

Set the home page when the user opens the Smoothwall Browser. Type the web address with the leading ‘https://’.

Note

The user cannot change the home page settings.

https://www.google.com

DisableFiltering Boolean

Optional.

v113.2.2 and later.
This flag can be used to disable filtering in the browser. It is intended for Monitor customers who do not want any filtering done by Smoothwall Browser itself, not even the built-in filtering supplied to all customers.

With it enabled, websites will load without being inspected by the app. For Cloud Filter customers it will also prevent filter logs being created and uploaded to Smoothwall.

/true

/false

To control whether other apps are allowed to display web content, see Limiting access to in-app browsers on iPad.

Step 2: Create a manual Properties list (plist)

If your MDM does not have a User Interface for configuring individual fields, upload a 'plist’ file to the iPads.

The UserID field is required to determine the user shown in the logs and alerts. To have the correct value, do not hard-code a string; let your MDM push the users’ variables into the plist instead. For example, you can push the user’s variable %Email% in JAMF School and {{userprincipalname}} for the UPN in Intune.

To find the variables for your MDM provider, consult their documentation:

If you use the Apple School Manager to manage shared iPads, see Additional Configuration Options for Shared iPads for more information.

MDM Plist Examples

Jamf Pro

Unset

<dict>
<key>SmoothwallSerialNumber</key>
<string></string>
<key>SmoothwallTenantID</key>
<string></string>
<key>UserID</key>
<string></string>
<key>UniqueDeviceID</key>
<string>$DEVICENAME</string>
<key>HomePageURL</key>
<string>https://www.google.com</string>
</dict>

Jamf School

Unset

<plist>
<dict>
<key>SmoothwallSerialNumber</key>
<string></string>
<key>SmoothwallTenantID</key>
<string></string>
<key>UserID</key>
<string></string>
<key>UniqueDeviceID</key>
<string>%Name%</string>
<key>HomePageURL</key>
<string>https://www.google.com</string>
</dict>
</plist>

Lightspeed

Unset

<dict>
<key>SmoothwallSerialNumber</key>
<string></string>
<key>SmoothwallTenantID</key>
<string></string>
<key>UserID</key>
<string></string>
<key>UniqueDeviceID</key>
<string>%device_name%</string>
</dict>

Intune

Unset

<dict>
<key>SmoothwallSerialNumber</key>
<string></string>
<key>SmoothwallTenantID</key>
<string></string>
<key>UserID</key>
<string></string>
<key>UniqueDeviceID</key>
<string>{{DeviceName}}</string>
<key>HomePageURL</key>
<string>https://www.google.com</string>
</dict>

Step 3: Verify the installation

Use your MDM to force a restart of the devices after installation. To verify the installation, open the Smoothwall Browser on an iPad. If the installation is successful you will be able to open a website.

If the installation fails, you will be prompted for the user configuration details. To resolve the issue, check your MDM variables for case-sensitivity and completeness. Then, redeploy the installation. If you continue to have issues with your installation, contact your Monitor deployment manager or Smoothwall Support for assistance.
